H665 is a GPON ONT that can be used for a wide range of enterprise solutions for businesses as well as homes. GPON technology supports 2.5Gbps downlink and 1.25Gbps uplink data rate. With the H665, users can easily and quickly enjoy bandwidth-intensive multimedia services such as real-time video, audio, and games. The H665 provides one GPON port for configuring a GPON network and provides one 10/100 / 1000Base-T Gigabit Ethernet port.

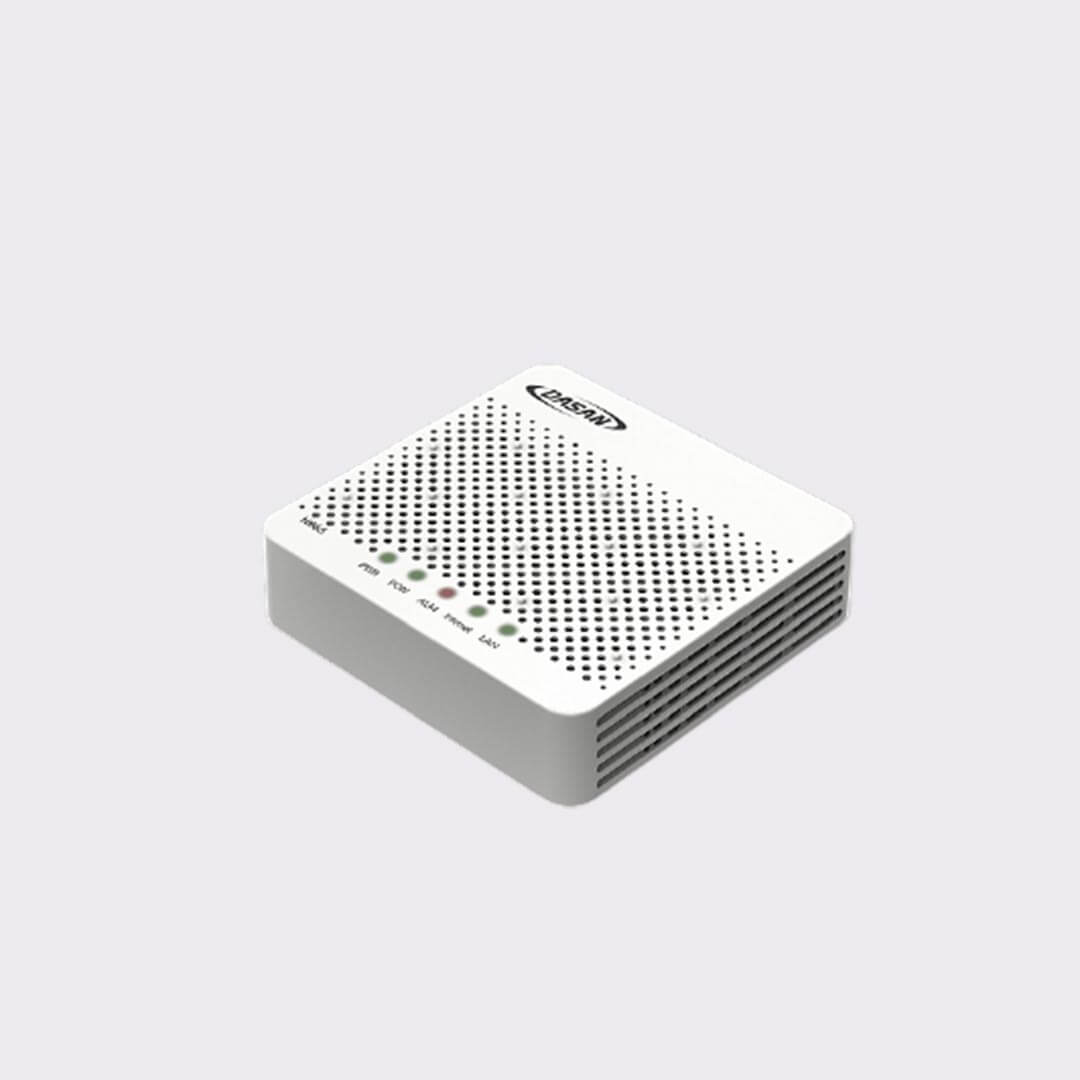

DASAN-H665 GPON ONU
Description
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Related products
syrotech Gpon-4 olt -l3
Pizza-Box OLT series products is 1U high 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to deploy in an compact room environment. The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. It is a high cost performance products. GOPON-4OLTprovides 4GE(copper)and 4SFP slots Combo interface for uplink. 4 EPON ports for downstream. It can support 256 ONU under 1:64 splitter ratio.
Syrotech -SY-GOPON-8OLT-L3
L3 EPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and IOT applications.ons
Richerlink ONU- RL801E
Richerlink ONU- RL801E EPON Interface
Rate Upsteam: 1.25Gbps Downsteam: 1.25Gbps
Interface standard IEEE802.3ah EPON standard
Launch power Min: 0dBm Max: +4dBm
Sensitivity -27dBm
Input Power Overload -7dBm
Service Interface
EPON Interface 1 EPON Port
Data Interface 1 GE
Environmental conditions
Storage temperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
Operation temperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
Power Supply and Consumption
Power Adaptor Input: 100 to 240 V AC, 50/60 Hz; Output: 12 V, 0.5A
Consumption =4W
Physical specifications
Dimensions 108mm×85mm×26mm(L×W×H)
Weight 0.20KG
Richerlink GPON OLT-RL8008GL
RicherLink GPON OLT-RL8008GL Network interface, GPON interface 8 x GPON (2.5/1.25 Gbps), 10GE Ethernet 2 x 10GE SFP+, 1GE Ethernet 4 x RJ, 45+ 2 x SFP, PON interface, GPON ITU-TG.984.x standard, Local Management interface, Console RJ-45 EIA/TIA-232 Console management port
MGMT 1000BASE-T out-band management port
Performance
Switching Capacity 68Gbps
Package transmit rate 72Mpps
Split ratio 1:128
Maximum ONU quantity 4096 GEM port-ids, 1024 T-CONT, 128 ONT
Power Supply and Consumption
Power Adaptor AC Input:100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V
Redundancy Design Pluggable double power supply, double AC, double DC and AC+DC
Consumption <70 W
Environmental conditions
Storage temperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
Operation temperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
Physical specifications
Dimensions 440mm×345mm× 44mm(W * D *H)
Weight < 6.0 KG
Key Feature Support on RL8008GL
Ethernet switching (L2) features
VLAN 4K VLAN entries
Port-based QinQ and Selective QinQ (StackVLAN)
Port-based/MAC-based/IP subnet-based VLA
Spanning tree IEEE 802.1x STP/RSTP/MSTP
ONU remote loop detection
MAC MAC Black Hole
Port MAC limit
64K MAC address
Port Bi-direction bandwidth control
Port mirroring and traffic mirroring
Service features
Multicast IGMPv1/v2/v3
IGMP Snooping/Proxy
IGMP filtering
QoS Base on port or user-defined rate limitation
Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority
Base on port or user-defined high grade queue scheduling
Priority queues and scheduler of SP, WRR and SP+WRR.
Congestion avoidance system
Security features
User security Anti-ARP-spoofing deceive defend
Anti-ARP-flooding flooding attack automatic control
IP,MAC,port and VLAN binding
Port isolation
Device security Defend DOS attack
Security IP login through Telnet
Hierarchical management and password protection of users
Network security IP address?VLAN ID?MAC address and port manual binding
Port broadcast /multibroadcast restrain
Base on source / destination MAC address,VLAN,802.1p,ToS,DiffServ,source/ destination IP(IPv4/IPv6) address,TCP/UDP port number protocol type of IP package flow classify and flow defined regulation management,support package header 80 byte depth L2-L7 ACLflow filtrate
Dynamic ARP table-based binding
DHCP Option82 and PPPoE+ upload user’s physical location
Network management Command-line interface(CLI), Console, Telnet and WEB configuration
RMON (Remote Monitoring)1/2/3/9 groups of MIB
System configuration with SNMPv1/v2/v3
NTP(Network Time Protocol)
NMS2000 network management
RicherLink XPON ONU-RL821GWV
Rate Upsteam: 1.244Gbps Downsteam: 2.488Gbps
Interface standard ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+
Launch power Min: 0dBm Max: +5dBm
Sensitivity -27dBm
Input Power Overload -8dBm
Service Interface
GPON Interface 1 GPON Port
Data Interface 1 GE + 1 FE
POTS Interface 1 FXS Port
WIFI Interface IEEE 802.11 ac/n/g/b/a wireless LAN
Antenna Type 2 external antennas
Environmental conditions
Storage temperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
Operation temperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
Power Supply and Consumption
Power Adaptor Input: 100 to 240 V AC, 50/60 Hz; Output: 12 V, 1A
Consumption =8W
Physical specifications
Dimensions 180mm×120mm×31mm(L×W×H)
Weight 0.24KG
Key Feature Support on RL821GWV
Richerlink OLT – RL8008ES
The RicherLink RL8008ES OLT device (Figure 1) is self-developed Compact 1U EPON OLT equipment,meeting the requirements of IEEE802.3ah and meets the EPON OLT requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0, possessing super EPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. RL8008ES OLT FTTH can be used with NMS2000 network management system so as to provide users with the perfect solution.The RL8008ES OLT device provides 8 *Downsteam EPON ports, 4GE * Uplink ETH ports, 2GE * Uplink SFP ports and 2*10G Uplink SFP+ ports. Up to 1:64 Split ratio for up to 512 EPON users. The 1U pizzabox design is for easy installation, Maintenance and Space saving. RL8008ES EPON OLT is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.
