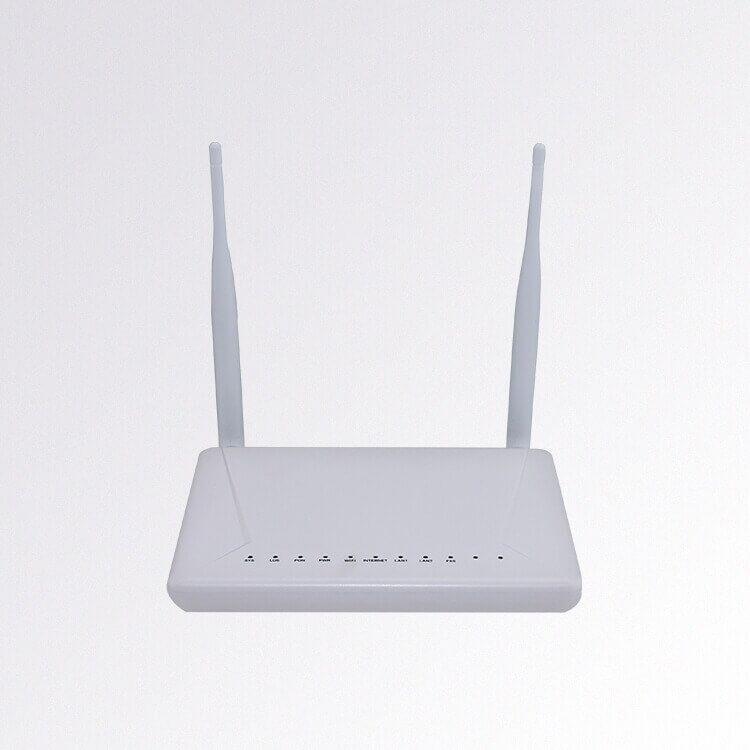

ONT (Optical Network Termination), also called ONU (Optical Network Unit), refer to the consumer end equipment in an optical Fiber to the Home (FTTH) link. An ONU converts optical signals to electrical signals via a fiber cable. An ONU organizes and optimizes different types of data coming from customers to efficiently send it upstream to the OLT (located at an ISP’s central hub).
Rate Upsteam: 1.244Gbps Downsteam: 2.488Gbps
Interface standard ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+
Launch power Min: 0dBm Max: +5dBm
Sensitivity -27dBm
Input Power Overload -8dBm
Service Interface
GPON Interface 1 GPON Port
Data Interface 1 GE + 1 FE
POTS Interface 1 FXS Port
WIFI Interface IEEE 802.11 ac/n/g/b/a wireless LAN
Antenna Type 2 external antennas
Environmental conditions
Storage temperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
Operation temperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
Power Supply and Consumption
Power Adaptor Input: 100 to 240 V AC, 50/60 Hz; Output: 12 V, 1A
Consumption =8W
Physical specifications
Dimensions 180mm×120mm×31mm(L×W×H)
Weight 0.24KG
Key Feature Support on RL821GWV
