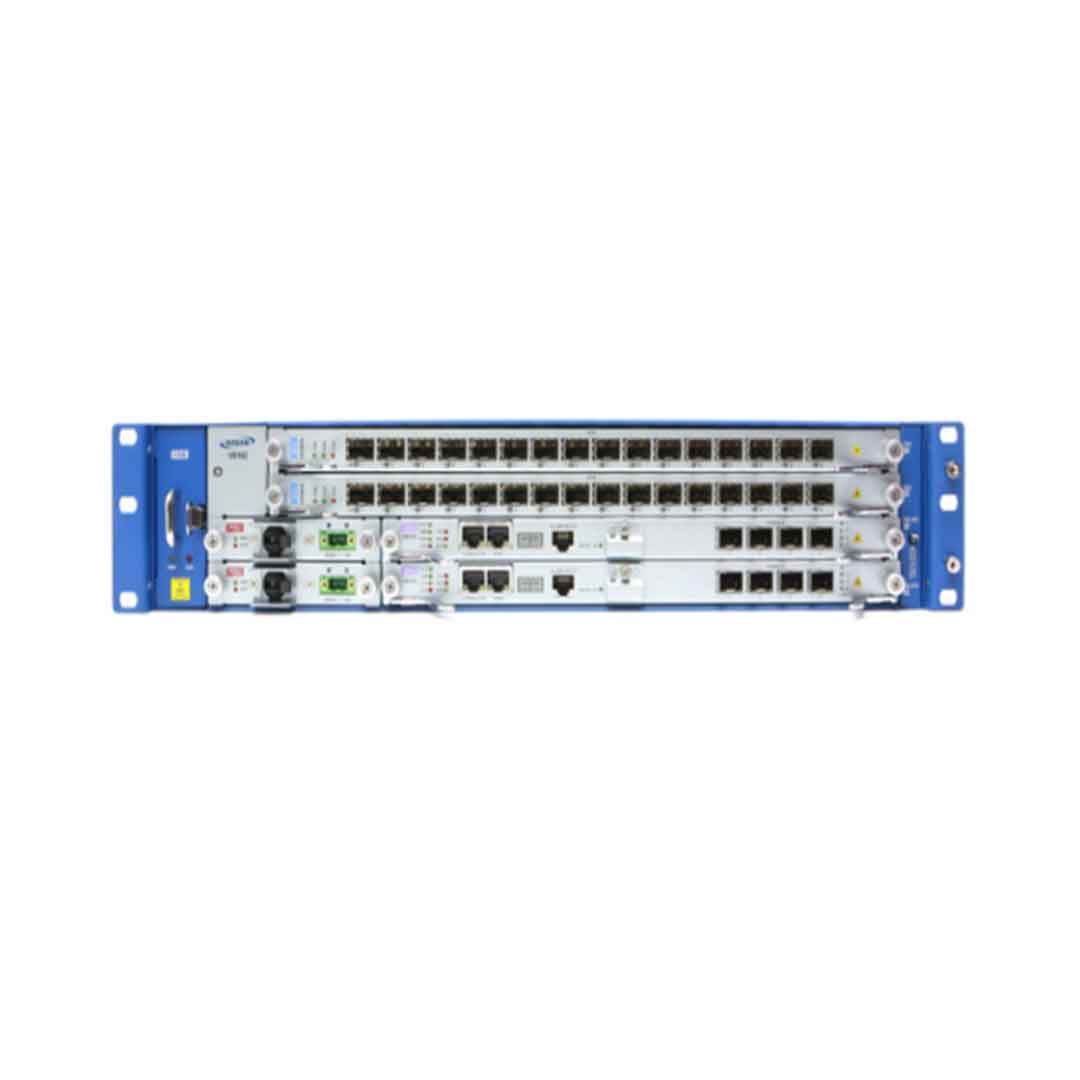

The DASAN V8102 is a 2RU height chassis-based GPON OLT system with four slots for two service module units and two switching fabric units with uplink modules, providing a wide range of high-performance features for FTTx applications. A high-density chassis system that supports up to 4,096 residential and business subscribers with 32 GPON ports (1: 128 split ratio). The most compact type of GPON OLT Chassis system that supports GPON Protection worldwide. The V8102 provides high capacity GPON access and 10GbE uplink with a 320Gbps non-blocking switch fabric. The V8102 is a fully redundant design concept for SFU / Power / GPON devices to ensure the reliability of the equipment. PON technology adds new features to improve performance and interoperability and seeks support for new applications, services, and installation environments.
DASAN V8102 Specification
DIMENSIONS
Size(W x H x D)
- 443.8 x 88.5 x 280 mm
Input Power
- Input : -48VDC (redundancy)
Service Ports
- 96 GPON(SFP, SC/PC type)
Uplink Ports
- 2 Slots for SFU(Switching Fabric Unit)
- 4 10GE Ports(SFP+) or 4 GE Port(SFP)
MGMT Ports
- 1 Port Tx for MGMT(RJ45)
- 1 Port Alarm Interface(RJ45)
- 1 Port microSD Interface
Console Port
- 1 Console (RS232)
Layer 2
- Standard Ethernet bridging
- Port/Subnet/Protocol-based VLAN
- Spanning Tree: STP, RSTP, MSTP
- 802.3ad Link aggregation based on MAC
Layer 3
- IPv4 routing / IPv6 routing
- RIPv1/v2, OSPFv2, BGPv4
- Virtual Router Redundancy Protocol (VRRP)
V8102 Multicast
- IGMPv1/v2/v3, PIM-SM/SSM
- IGMP snooping
- Multicast VLAN Registration (MVR)
GPON
- ITU-T G.984 compliant
- Remote ONT/MDU management
- Multiple T-CONTs per MDU (ONT)
- Automatic ONT ranging
- Serial / Telnet (CLI)
- SNMPv1/v2/v3, RMON
Operating Temperature
- -15~55°C
Humid ity
- 0~90% (non-condensing)
