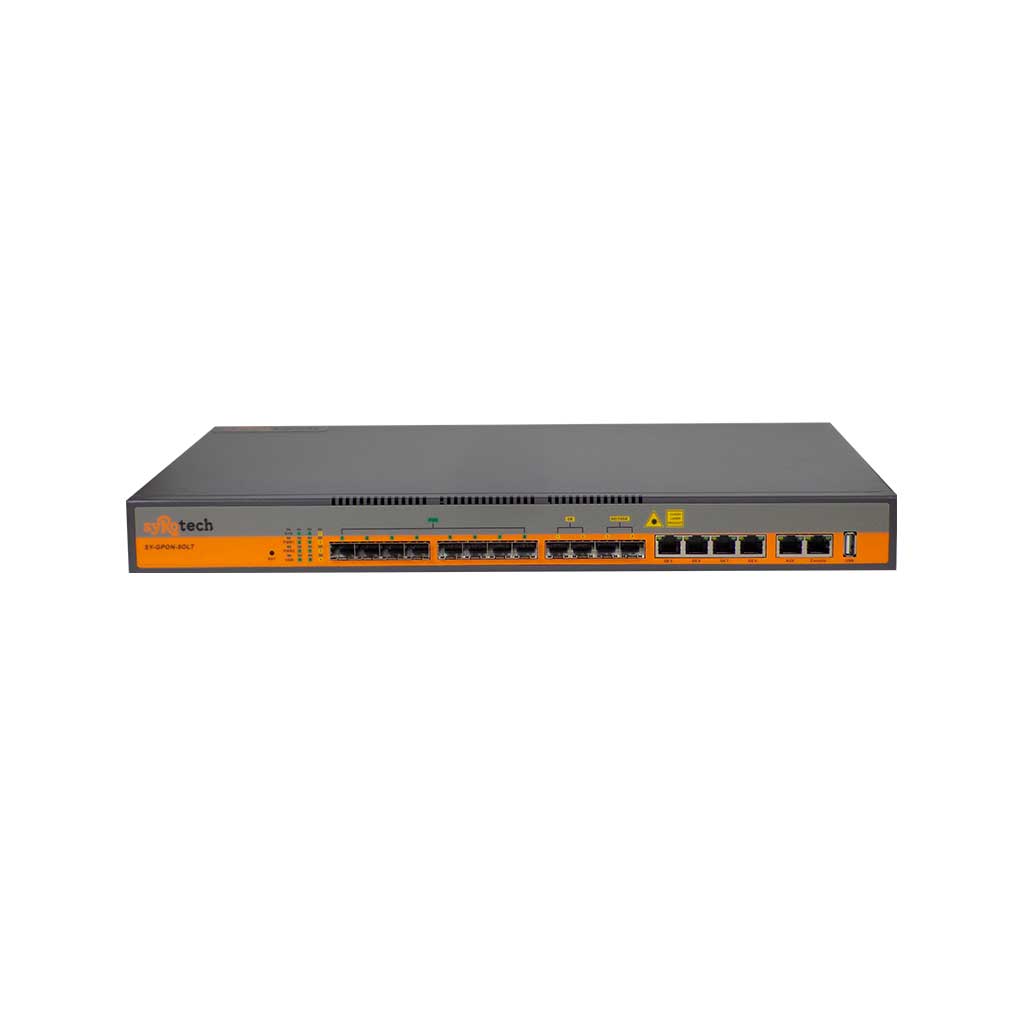

Syrotech -SY-GOPON-8OLT-L3

Richerlink GPON OLT-RL8008GNetwork interface GPON interface 8 x GPON (2.5/1.25 Gbps) 10GE Ethernet 4 x 10GE SFP+ 1GE Ethernet 4 x RJ-45 PON interface GPON ITU-TG.984.x standard Local Management interface Console RJ-45 EIA/TIA-232 Console management port MGMT 1000BASE-T out-band management port Performance Switching Capacity 96Gbps Package transmit rate 72Mpps Split ratio 1:128 Maximum ONU quantity 4096 GEM port-ids, 1024 T-CONT, 128 ONT Power Supply and Consumption Power Adaptor AC Input:100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V Redundancy Design Pluggable double power supply, double AC, double DC and AC+DC Consumption <70 W Environmental conditions Storage temperature -10 to 70°C, rel. humidity 10–90% (non-condensing) Operation temperature 0 to 45°C, rel. humidity 10–90% (non-condensing) Physical specifications Dimensions 440mm×400mm× 44mm(W * D *H) Weight < 6.5 KG Key Feature Support on RL8008GEthernet switching (L2) features VLAN 4K VLAN entries Port-based QinQ and Selective QinQ (StackVLAN) Port-based/MAC-based/IP subnet-based VLA Spanning tree IEEE 802.1x STP/RSTP/MSTP ONU remote loop detection MAC MAC Black Hole Port MAC limit 64K MAC address Port Bi-direction bandwidth control Port mirroring and traffic mirroring Service features Multicast IGMPv1/v2/v3 IGMP Snooping/Proxy IGMP filtering QoS Base on port or user-defined rate limitation Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority Base on port or user-defined high grade queue scheduling Priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoidance system Security features User security Anti-ARP-spoofing deceive defend Anti-ARP-flooding flooding attack automatic control IP,MAC,port and VLAN binding Port isolation Device security Defend DOS attack Security IP login through Telnet Hierarchical management and password protection of users Network security IP address?VLAN ID?MAC address and port manual binding Port broadcast /multibroadcast restrain Base on source / destination MAC address,VLAN,802.1p,ToS,DiffServ,source/ destination IP(IPv4/IPv6) address,TCP/UDP port number protocol type of IP package flow classify and flow defined regulation management,support package header 80 byte depth L2-L7 ACLflow filtrate Dynamic ARP table-based binding DHCP Option82 and PPPoE+ upload user’s physical location Network management Command-line interface(CLI), Console, Telnet and WEB configuration RMON (Remote Monitoring)1/2/3/9 groups of MIB System configuration with SNMPv1/v2/v3 NTP(Network Time Protocol) NMS2000 network management PRODUCT INQUIRY
