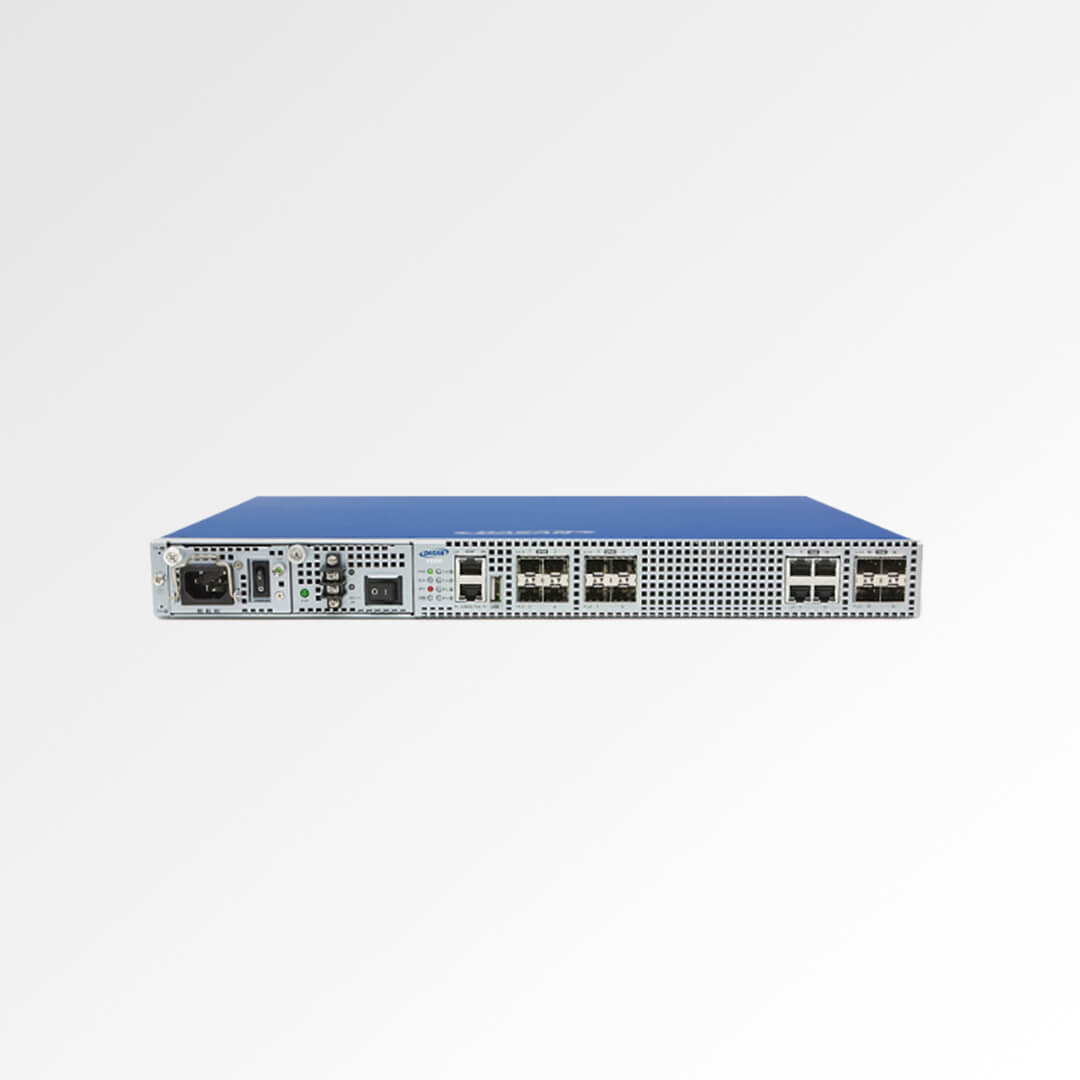

DASAN- V5808 GPON OLT
Description
Input Power
AC type : 100-240VAC, 50/60Hz
DC type : -48/60VDC
GPON
ITU-T G.984 compliant
Supports ITU-T G.984.4 ONT Management & Control Interface (OMCI)
Remote ONT/ONU management
Automatic ONT ranging
4k port-ID and 1k alloc-ID
Layer 2
Standard Ethernet bridging
Port/Subnet/Protocol-based VLAN
Spanning Tree: STP, RSTP, MSTP
802.3ad Link aggregation based on MAC
Layer 3
L3 Host(IPv4/IPv6) 1.5K/768
Static routing
1K L2 Multicast
1p mapper service profile on U/S
Mapping of GEM Ports into a T-CONT with priority queues based scheduling
Support for Multicast GEM Port
