Home FTTx EPON OLT Richerlink OLT – RL8004EN
ZOOOK | ThunderHead Premium On-Ear Wireless Stereo Headset with LED
Back to products
Richerlink OLT - RL8008ES 75,000.00৳

Richerlink OLT – RL8004EN

45,000.00৳

The RicherLink RL8004EN 4 port EPON OLT (Figure 1) is self-developed Compact 1U EPON OLT equipment, meeting the requirements of IEEE802.3ah and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0, possessing super EPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirements on account of its excellent management, maintenance, and monitoring capability, abundant service features, and flexible network mode. RL8004EN can be used with the NMS2000 network management system so as to provide users with the perfect solution.

Compare
Add to wishlist
Categories: EPON, FTTx, OLT
Share:
  • Description
  • Reviews (0)
Description

RicherLink was founded in 2009 by ten-member team with enthusiasm to embrace a bright future. RicherLink launched its first self-developed Industrial-Class 3 Layers Switch at 2010. At 2011 RicherLink launched its first self-developed Wireless AP for China-Telecom. In 2012 RicherLink launched the industry’s first VoIP EoC Slave and RicherLink launched its first self-developed EPON ONU (BCM Chipset). In 2013 RicherLink launched its first self-developed 3 in 1 EoC Master and RicherLink launched its first self-developed 4 ports EPON OLT(Cortina Chipset). In 2014 RicherLink finished full-series G/EPON ONU(MTK Chipset), RicherLink developed 8 ports & 4 ports outdoor EPON OLT. In 2015 Built New manufacturing center and SMT base, RicherLink launched its first self-developed 8 ports GPON OLT(BCM Chipset). 2016 The company expanded its scale and moved its headquarters to a new office building. RicherLink launched its first self-developed 16 ports GPON OLT(BCM Chipset). And in 2017 GPON, EPON Product Line Increased by more than 100% in the past 3 years. 2019 RicherLink launched its self-developed 5U and 10U xPON OLT series. Officially set up a new factory in huizhou,China.

OLT, also called an optical line terminal, is a device which serves as the service provider endpoint of a passive optical network. … To perform conversion between the electrical signals used by the service provider’s equipment and the fiber optic passive component signals used by the passive optical network.

Richerlink OLT – RL8004EN

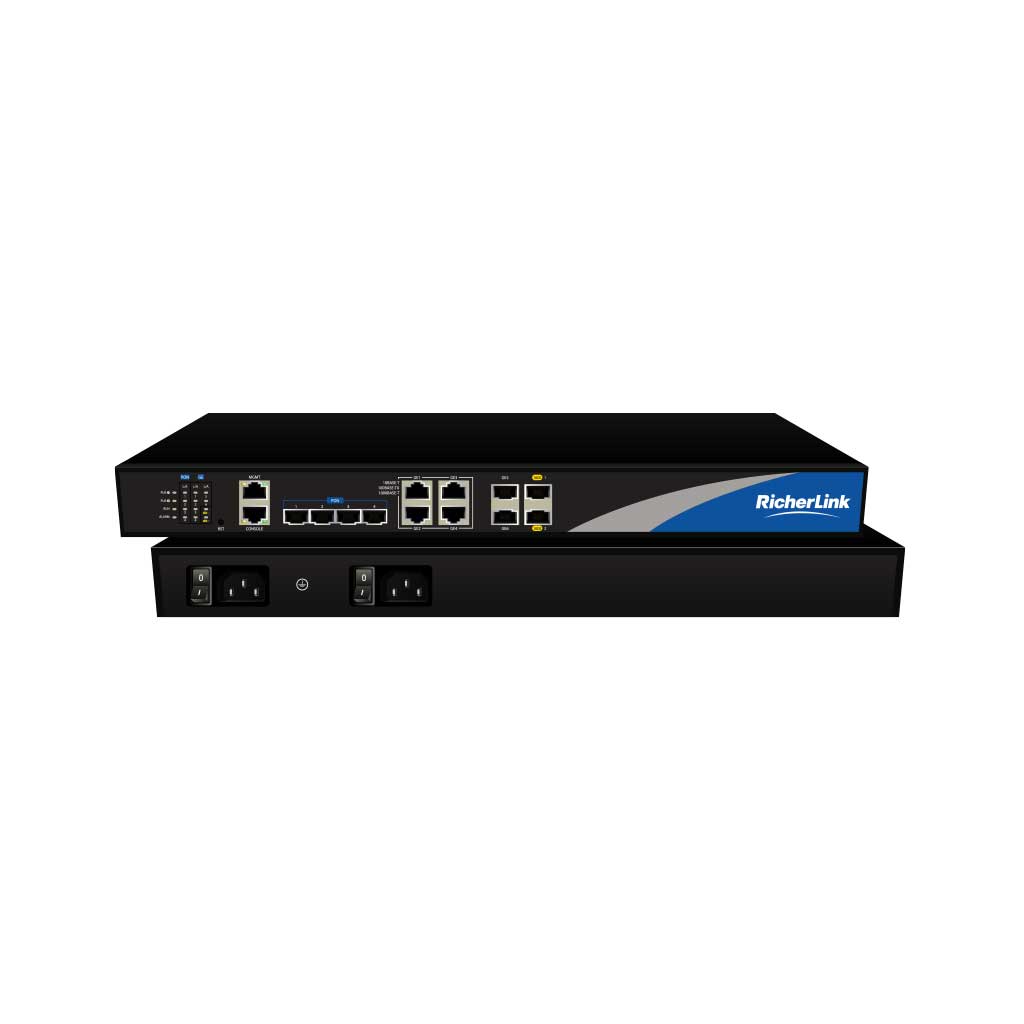

The RicherLink RL8004EN 4 port EPON OLT (Figure 1) is self-developed Compact 1U EPON OLT equipment, meeting the requirements of IEEE802.3ah and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0, possessing super EPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirements on account of its excellent management, maintenance, and monitoring capability, abundant service features, and flexible network mode. RL8004EN can be used with the NMS2000 network management system so as to provide users with the perfect solution.

The RL8004EN EPON OLT provides 4 *Downstream EPON ports, 4 * Uplink GE ETH-ports and 2 * Uplink GE SFP ports. Up to 1:64 Split ratio for up to 256 EPON users. The 1U pizza box design is for easy installation, Maintenance, and Space-saving. RL8004EN 4 port EPON OLT is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Related products

Sold out
Compare

Syrotech -SY-GOPON-2OLT-L2

FTTx, EPON, OLT

2PON OLT is the EPON OLT optical line terminal equipment. It can support 2 EPON PON ports and connect 128 ONU at most(by 1:64 splitter), and provides 2 uplink GE optic SFP slots and 2 uplink copper SFP slots.

Add to wishlist
Read more
Quick view
Compare

Syrotech ONU -SY-GPON-1110-WDONT

FTTx, GPON, ONU
WAN Ports Fiber PortConnectivity Type Cable Receive Sensitivity <-27dBm(PX20+) Optical Type SC/APC RF (CATV) Interface 1 CATV F connector
Add to wishlist
Read more
Quick view
Compare

Syrotech-SY-GOPON-16OLT-L3

FTTx, EPON, OLT
Add to wishlist
Read more
Quick view
-22%
Compare

Richerlink ONU- RL801E

FTTx, EPON, ONU, HOT DEALS
1,150.00৳  900.00৳
Richerlink ONU- RL801E EPON Interface Rate Upsteam: 1.25Gbps Downsteam: 1.25Gbps Interface standard IEEE802.3ah EPON standard Launch power Min: 0dBm Max: +4dBm Sensitivity -27dBm Input Power Overload -7dBm Service Interface EPON Interface 1 EPON Port Data Interface 1 GE Environmental conditions Storage temperature -10 to 70°C, rel. humidity 10–90% (non-condensing) Operation temperature 0 to 45°C, rel. humidity 10–90% (non-condensing) Power Supply and Consumption Power Adaptor Input: 100 to 240 V AC, 50/60 Hz; Output: 12 V, 0.5A Consumption =4W Physical specifications Dimensions 108mm×85mm×26mm(L×W×H) Weight 0.20KG
Add to wishlist
Add to cart
Quick view
Compare

Syrotech-SY-GOPON-4OLT-L3

FTTx, EPON, OLT
48,000.00৳
Provides 4GE(copper) 4SFP/4SFP+ slots independent interface for uplink 4*EPON OLT ports for downstream. It can support 256 ONUs under 1:64 splitter ratio
Add to wishlist
Add to cart
Quick view
Compare

Richerlink GPON OLT-RL8008GL

FTTx, GPON, OLT
122,000.00৳
RicherLink GPON OLT-RL8008GL Network interface, GPON interface 8 x GPON (2.5/1.25 Gbps), 10GE Ethernet 2 x 10GE SFP+, 1GE Ethernet 4 x RJ, 45+ 2 x SFP, PON interface, GPON ITU-TG.984.x standard, Local Management interface,  Console RJ-45 EIA/TIA-232 Console management port MGMT 1000BASE-T out-band management port Performance Switching Capacity 68Gbps Package transmit rate 72Mpps Split ratio 1:128 Maximum ONU quantity 4096 GEM port-ids, 1024 T-CONT, 128 ONT Power Supply and Consumption Power Adaptor AC Input:100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V Redundancy Design Pluggable double power supply, double AC, double DC and AC+DC Consumption <70 W Environmental conditions Storage temperature -10 to 70°C, rel. humidity 10–90% (non-condensing) Operation temperature 0 to 45°C, rel. humidity 10–90% (non-condensing) Physical specifications Dimensions 440mm×345mm× 44mm(W * D *H) Weight < 6.0 KG Key Feature Support on RL8008GL Ethernet switching (L2) features VLAN 4K VLAN entries Port-based QinQ and Selective QinQ (StackVLAN) Port-based/MAC-based/IP subnet-based VLA Spanning tree IEEE 802.1x STP/RSTP/MSTP ONU remote loop detection MAC MAC Black Hole Port MAC limit 64K MAC address Port Bi-direction bandwidth control Port mirroring and traffic mirroring Service features Multicast IGMPv1/v2/v3 IGMP Snooping/Proxy IGMP filtering QoS Base on port or user-defined rate limitation Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority Base on port or user-defined high grade queue scheduling Priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoidance system Security features User security Anti-ARP-spoofing deceive defend Anti-ARP-flooding flooding attack automatic control IP,MAC,port and VLAN binding Port isolation Device security Defend DOS attack Security IP login through Telnet Hierarchical management and password protection of users Network security IP address?VLAN ID?MAC address and port manual binding Port broadcast /multibroadcast restrain Base on source / destination MAC address,VLAN,802.1p,ToS,DiffServ,source/ destination IP(IPv4/IPv6) address,TCP/UDP port number protocol type of IP package flow classify and flow defined regulation management,support package header 80 byte depth L2-L7 ACLflow filtrate Dynamic ARP table-based binding DHCP Option82 and PPPoE+ upload user’s physical location Network management Command-line interface(CLI), Console, Telnet and WEB configuration RMON (Remote Monitoring)1/2/3/9 groups of MIB System configuration with SNMPv1/v2/v3 NTP(Network Time Protocol) NMS2000 network management
Add to wishlist
Add to cart
Quick view
Compare

Richerlink GPON OLT-RL8008G

FTTx, GPON, OLT
Richerlink GPON OLT-RL8008GNetwork interface GPON interface 8 x GPON (2.5/1.25 Gbps) 10GE Ethernet 4 x 10GE SFP+ 1GE Ethernet 4 x RJ-45 PON interface GPON ITU-TG.984.x standard Local Management interface Console RJ-45 EIA/TIA-232 Console management port MGMT 1000BASE-T out-band management port Performance Switching Capacity 96Gbps Package transmit rate 72Mpps Split ratio 1:128 Maximum ONU quantity 4096 GEM port-ids, 1024 T-CONT, 128 ONT Power Supply and Consumption Power Adaptor AC Input:100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V Redundancy Design Pluggable double power supply, double AC, double DC and AC+DC Consumption <70 W Environmental conditions Storage temperature -10 to 70°C, rel. humidity 10–90% (non-condensing) Operation temperature 0 to 45°C, rel. humidity 10–90% (non-condensing) Physical specifications Dimensions 440mm×400mm× 44mm(W * D *H) Weight < 6.5 KG Key Feature Support on RL8008GEthernet switching (L2) features VLAN 4K VLAN entries Port-based QinQ and Selective QinQ (StackVLAN) Port-based/MAC-based/IP subnet-based VLA Spanning tree IEEE 802.1x STP/RSTP/MSTP ONU remote loop detection MAC MAC Black Hole Port MAC limit 64K MAC address Port Bi-direction bandwidth control Port mirroring and traffic mirroring Service features Multicast IGMPv1/v2/v3 IGMP Snooping/Proxy IGMP filtering QoS Base on port or user-defined rate limitation Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority Base on port or user-defined high grade queue scheduling Priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoidance system Security features User security Anti-ARP-spoofing deceive defend Anti-ARP-flooding flooding attack automatic control IP,MAC,port and VLAN binding Port isolation Device security Defend DOS attack Security IP login through Telnet Hierarchical management and password protection of users Network security IP address?VLAN ID?MAC address and port manual binding Port broadcast /multibroadcast restrain Base on source / destination MAC address,VLAN,802.1p,ToS,DiffServ,source/ destination IP(IPv4/IPv6) address,TCP/UDP port number protocol type of IP package flow classify and flow defined regulation management,support package header 80 byte depth L2-L7 ACLflow filtrate Dynamic ARP table-based binding DHCP Option82 and PPPoE+ upload user’s physical location Network management Command-line interface(CLI), Console, Telnet and WEB configuration RMON (Remote Monitoring)1/2/3/9 groups of MIB System configuration with SNMPv1/v2/v3 NTP(Network Time Protocol) NMS2000 network management PRODUCT INQUIRY
Add to wishlist
Read more
Quick view
Compare

Syrotech ONU-SY-GOPON-1000R

FTTx, EPON, ONU
GOPON-1000R-WONU EPON ONU is one of the EPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data and video service based on the EPON network. EPON is the latest generations of access network technology. IEEE802.3ah is the standard protocol of EPON. The EPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. EPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. EPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. EPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.
Add to wishlist
Read more
Quick view
