Home Splicing Maching Joinwit-JW4108M Optical Fusion Splicer
Senter-ST805c-X-PON Power Meter
Back to products
GIGA POINT-GP8016

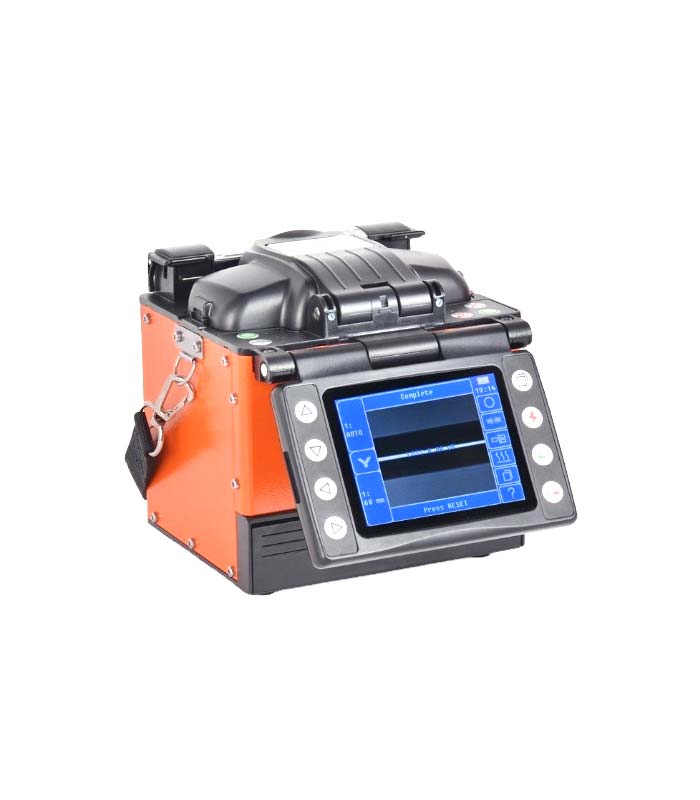

Joinwit-JW4108M Optical Fusion Splicer

75,000.00৳

Model:JW4108M
Brand Joinwit
Splicing Type:SM, MM, DS, NZDS
Splicing Loss:0.02dB(SM),0.01dB(MM),0.04dB(DS/NZDS)
Return Loss:>60dB
Splicing Time:≤9s
Heat Time:≤35s
Cleaved Length:8~16mm

Compare
Add to wishlist
Category: Splicing Maching
Share:
  • Description
  • Reviews (0)
Description

Model:Fusion Splicer

Splicing Type:SM, MM, DS, NZDS

Splicing Loss:0.02dB(SM),0.01dB(MM),0.04dB(DS/NZDS)

Return Loss:>60dB

Splicing Time:≤9s

Heat Time:≤35s
Cleaved Length:8~16mm

Optical fiber Alignment:precise, core and cladding alignment

Optical Fiber Diameter:Cladding Diameter 80~150um, Coating diameter 100~1000um

Cutting length:Coating layer 250 below 8~16 mm;

The coating layer is 250~ 1000 meters: 16 mm

Heat-Shrinkable T bush:60mm, 40mm and a series of miniature casing

Tension test:Standard 2N (optional)

Optical fiber fixture:3 in 1 fixture. For bare optical fiber, jumper wire, covered wire,
Optional function SC connector etc.

Amplification:≥200 times (X/Y axis display)

Display:3.5-inch TFT color LCD display, content can be flipped to
facilitate two-way operation

External Interface:USB interface for data download and software update

Welding mode:53 sets of factory mode, 40 sets of user mode

Heating mode:11 sets of factory mode, 24 sets of user mode

Continuous loss storage:The built-in memory holds 4000 latest connection results

Built-in Battery:Continuous welding and heating not less than 300 times
(typical environment)

Power Supply:Built-in lithium battery 11.1v power supply;
Independent charger, charging time ≤3.5 hours.

Power supply adapter, external adapter:(input ac100-240v 50/60hz, output dc13.5v / 4.8a)

Operating Temperature:Temperature: -10~+ 50°C, humidity: <95%RH(no condensation)

Working altitude: 0~5000m, maximum wind speed: 15m/s

Built-in Flooding Light:Easy to place optical fiber at night

Dimensions:125*105*113mm

Weight:1.15kg (battery not included)
