RicherLink was founded in 2009 by ten-member team with enthusiasm to embrace a bright future. RicherLink launched its first self-developed Industrial-Class 3 Layers Switch at 2010. At 2011 RicherLink launched its first self-developed Wireless AP for China-Telecom. In 2012 RicherLink launched the industry’s first VoIP EoC Slave and RicherLink launched its first self-developed EPON ONU (BCM Chipset). In 2013 RicherLink launched its first self-developed 3 in 1 EoC Master and RicherLink launched its first self-developed 4 ports EPON OLT(Cortina Chipset). In 2014 RicherLink finished full-series G/EPON ONU(MTK Chipset), RicherLink developed 8 ports & 4 ports outdoor EPON OLT. In 2015 Built New manufacturing center and SMT base, RicherLink launched its first self-developed 8 ports GPON OLT(BCM Chipset). 2016 The company expanded its scale and moved its headquarters to a new office building. RicherLink launched its first self-developed 16 ports GPON OLT(BCM Chipset). And in 2017 GPON, EPON Product Line Increased by more than 100% in the past 3 years. 2019 RicherLink launched its self-developed 5U and 10U xPON OLT series. Officially set up a new factory in huizhou,China.
ONT (Optical Network Termination), also called ONU (Optical Network Unit), refer to the consumer end equipment in an optical Fiber to the Home (FTTH) link. An ONU converts optical signals to electrical signals via a fiber cable. An ONU organizes and optimizes different types of data coming from customers to efficiently send it upstream to the OLT (located at an ISP’s central hub).

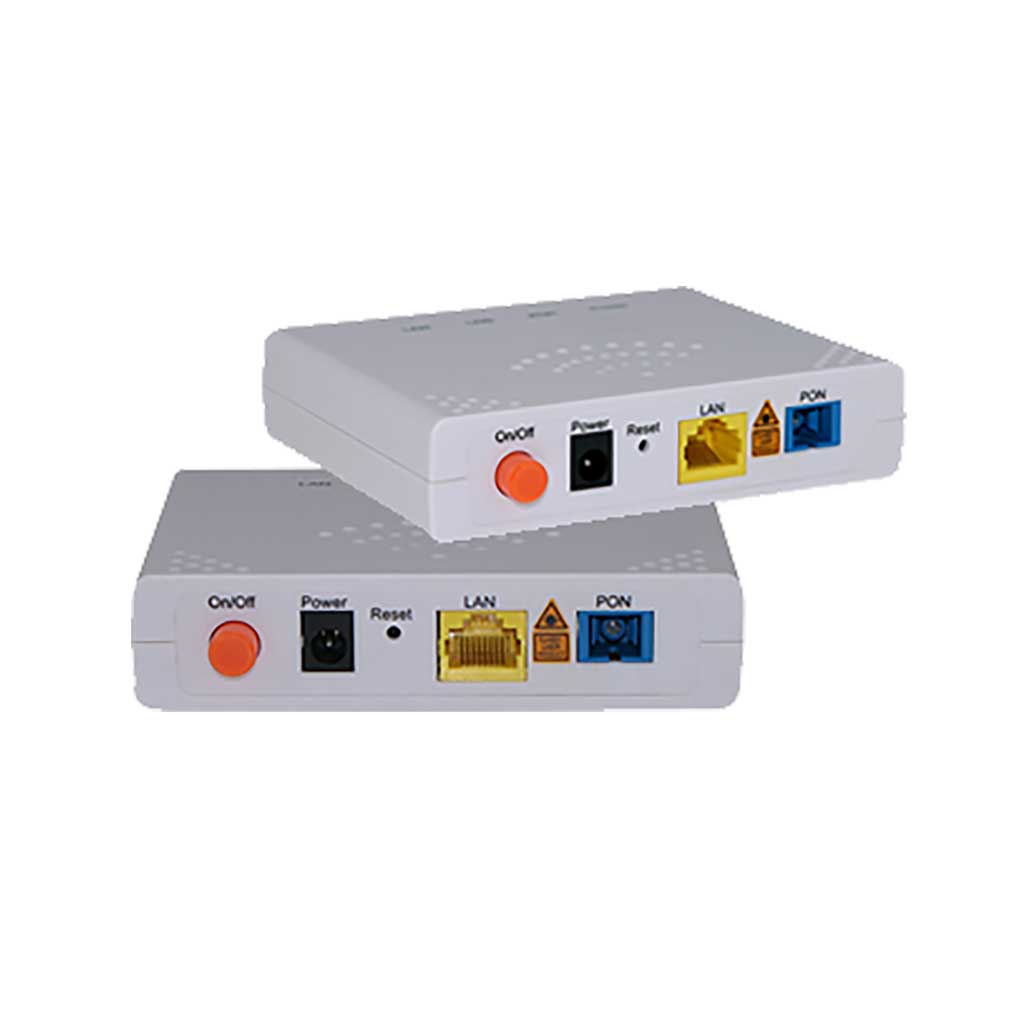

Richerlink ONU- RL801E EPON Interface
Rate Upsteam: 1.25Gbps Downsteam: 1.25Gbps
Interface standard IEEE802.3ah EPON standard
Launch power Min: 0dBm Max: +4dBm
Sensitivity -27dBm
Input Power Overload -7dBm
Service Interface
EPON Interface 1 EPON Port
Data Interface 1 GE
Environmental conditions
Storage temperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
Operation temperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
Power Supply and Consumption
Power Adaptor Input: 100 to 240 V AC, 50/60 Hz; Output: 12 V, 0.5A
Consumption =4W
Physical specifications
Dimensions 108mm×85mm×26mm(L×W×H)
Weight 0.20KG.
