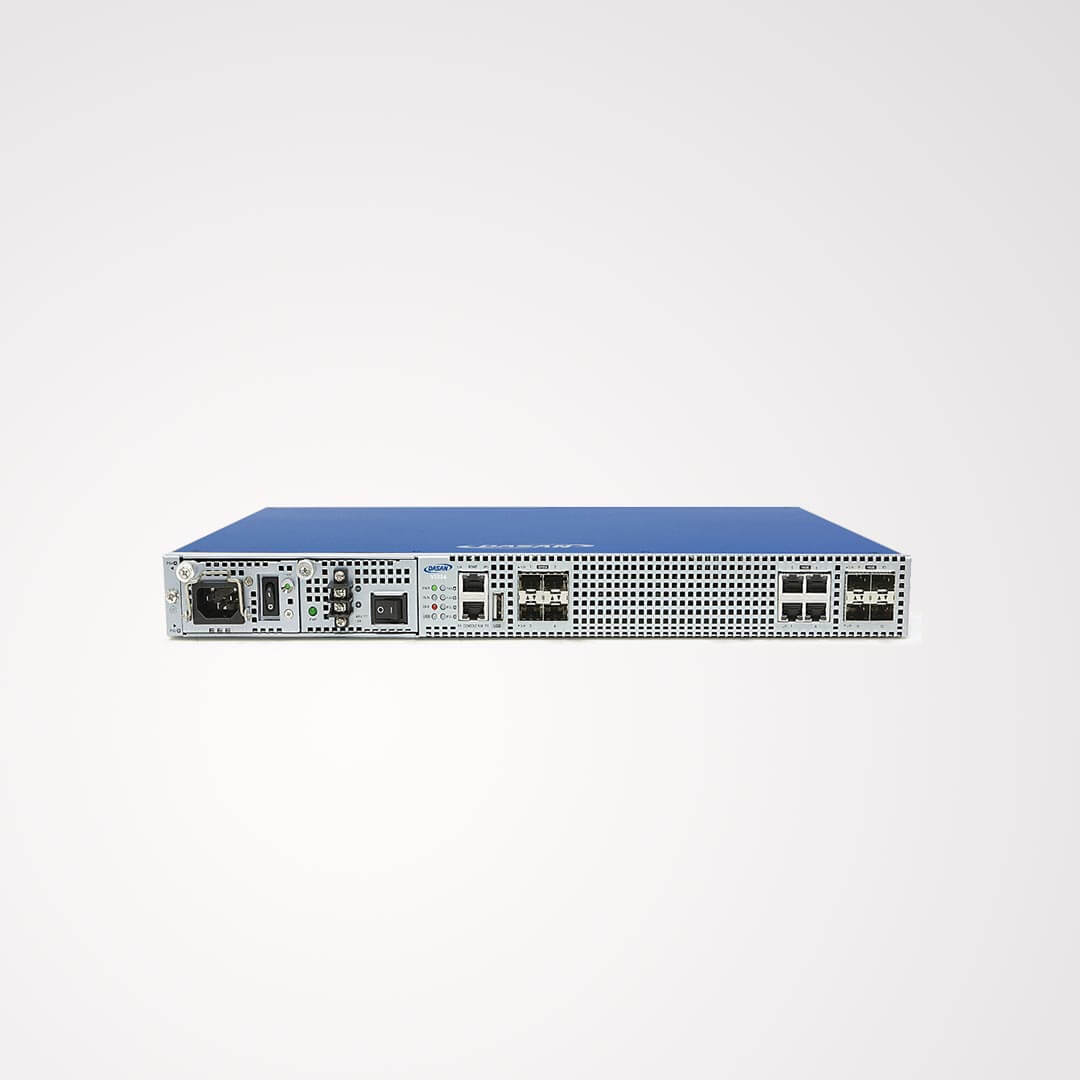

Richerlink GPON OLT-RL8008GNetwork interface
GPON interface 8 x GPON (2.5/1.25 Gbps)
10GE Ethernet 4 x 10GE SFP+
1GE Ethernet 4 x RJ-45
PON interface
GPON ITU-TG.984.x standard
Local Management interface
Console RJ-45 EIA/TIA-232 Console management port
MGMT 1000BASE-T out-band management port
Performance
Switching Capacity 96Gbps
Package transmit rate 72Mpps
Split ratio 1:128
Maximum ONU quantity 4096 GEM port-ids, 1024 T-CONT, 128 ONT
Power Supply and Consumption
Power Adaptor AC Input:100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V
Redundancy Design Pluggable double power supply, double AC, double DC and AC+DC
Consumption <70 W
Environmental conditions
Storage temperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
Operation temperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
Physical specifications
Dimensions 440mm×400mm× 44mm(W * D *H)
Weight < 6.5 KG
Key Feature Support on RL8008GEthernet switching (L2) features
VLAN 4K VLAN entries
Port-based QinQ and Selective QinQ (StackVLAN)
Port-based/MAC-based/IP subnet-based VLA
Spanning tree IEEE 802.1x STP/RSTP/MSTP
ONU remote loop detection
MAC MAC Black Hole
Port MAC limit
64K MAC address
Port Bi-direction bandwidth control
Port mirroring and traffic mirroring
Service features
Multicast IGMPv1/v2/v3
IGMP Snooping/Proxy
IGMP filtering
QoS Base on port or user-defined rate limitation
Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority
Base on port or user-defined high grade queue scheduling
Priority queues and scheduler of SP, WRR and SP+WRR.
Congestion avoidance system
Security features
User security Anti-ARP-spoofing deceive defend
Anti-ARP-flooding flooding attack automatic control
IP,MAC,port and VLAN binding
Port isolation
Device security Defend DOS attack
Security IP login through Telnet
Hierarchical management and password protection of users
Network security IP address?VLAN ID?MAC address and port manual binding
Port broadcast /multibroadcast restrain
Base on source / destination MAC address,VLAN,802.1p,ToS,DiffServ,source/ destination IP(IPv4/IPv6) address,TCP/UDP port number protocol type of IP package flow classify and flow defined regulation management,support package header 80 byte depth L2-L7 ACLflow filtrate
Dynamic ARP table-based binding
DHCP Option82 and PPPoE+ upload user’s physical location
Network management Command-line interface(CLI), Console, Telnet and WEB configuration
RMON (Remote Monitoring)1/2/3/9 groups of MIB
System configuration with SNMPv1/v2/v3
NTP(Network Time Protocol)
NMS2000 network management
