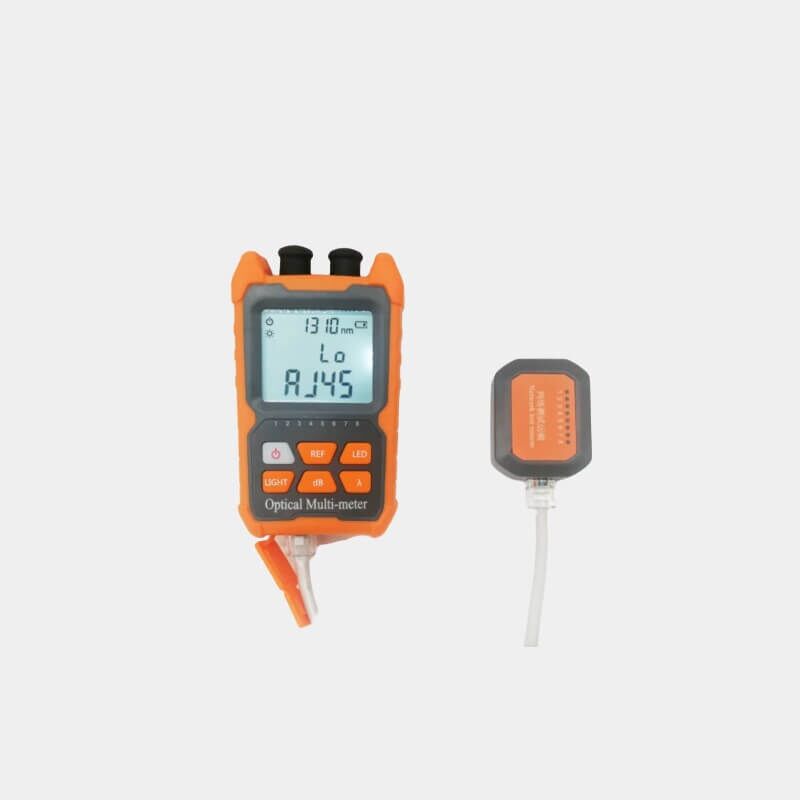

Optical multi meter

With a wide range of functions, ST800K-U optical power meter is a powerful tool for use in fiber-optic installation and maintenance. Its rugged, durable construction makes it the perfect choice for a wide range of field applications. ST800K-U Optical Power Meter can test optical power within the range of 800~1700nm wave length. There are 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, six kinds of wavelength calibration points. It can be used for linearity and non-linearity test and it can display both direct and relative test of optical power. This meter can be widely used in the test of LAN, WAN, metropolitan network, CATV net or long-distance fiber net and other situations.

OTDR – Full function OTDR that also allows live fiber testing (1310/1490/1550) PON Power Meter – Can check OLT/ONU, very useful for Internet providers. OPM – Optical Power meter +26 to -50 dB. VFL – Check fiber faults visually, Optical power is 5mw. LTDR – Measure the length, Breaking point, Short circuit point, Distance between 2 points For network cables, Coaxial cables and other cables & wires. Network Test – Check network health, No need of laptop, Check Internet speed. Link Test – Can check ping to the router/Gateway. Line Test – Check break/Shorting point in the copper cat-5/6 cables. Line Search – Find under the wall or cable in the control room.
